Creating Elevation Surface Models Using LiDAR

Creating Elevation Surface Models Using LiDAR

This tutorial provides the basic concept of LiDAR dataset and point cloud processing in ArcGIS Pro.

About This Tutorial

Section titled “About This Tutorial”
Author

Milan Budhathoki, GISP, Geospatial Librarian, GIS and Spatial Data Center, University of Maryland Libraries (mb17@umd.edu)

Time to Complete

40-50 minutes

License

Except where otherwise noted, content in this tutorial is licensed under a Creative Commons Attribution 4.0 International license.

Note for Instructors

Depending upon spatial extent and the density of LiDAR point cloud, processing can be computationally tedious. The LiDAR dataset that will be used in this tutorial is about 730mb and may take some good compute resources to perform 3D rendering of the dataset.

Introduction to LiDAR

Section titled “Introduction to LiDAR”

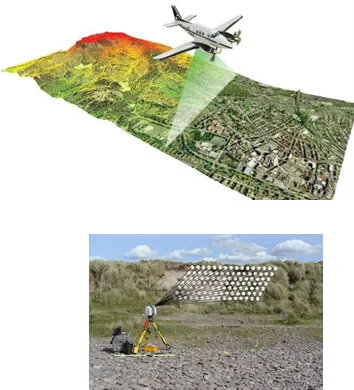

Light Detection And Ranging (LiDAR) is an active remote sensing technique that uses pulsed laser energy to collect very high resolution and accurate elevation data across landscapes. LiDAR data can be collected from space, airborne sensors, stationary and mobile platforms.

Media Options Airborne and Stationary LiDAR Collection

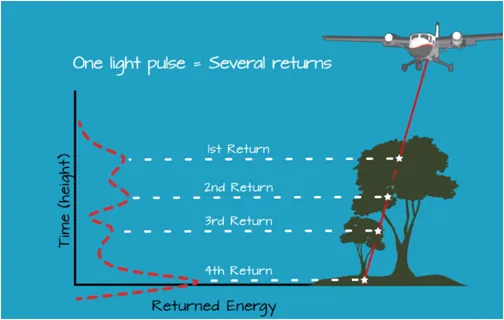

LiDAR Pulse Return

Section titled “LiDAR Pulse Return”

Depending upon the target object, the point cloud contains data points for scan hits and classified returns (Single Return- bare ground and Multiple Return-tree canopy).

Media OptionsLiDAR Pulse Return, Credit: NEON

LiDAR Point Cloud

Section titled “LiDAR Point Cloud”

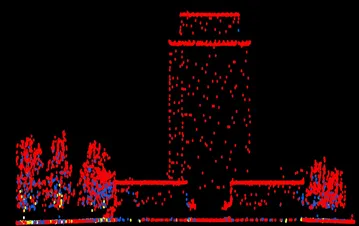

A LiDAR generated point cloud is a collection of points that stores 3D (XYZ) information along with other attributes (i.e classification, intensity, return number).

Media OptionsLiDAR Point Cloud Showing Building and Trees

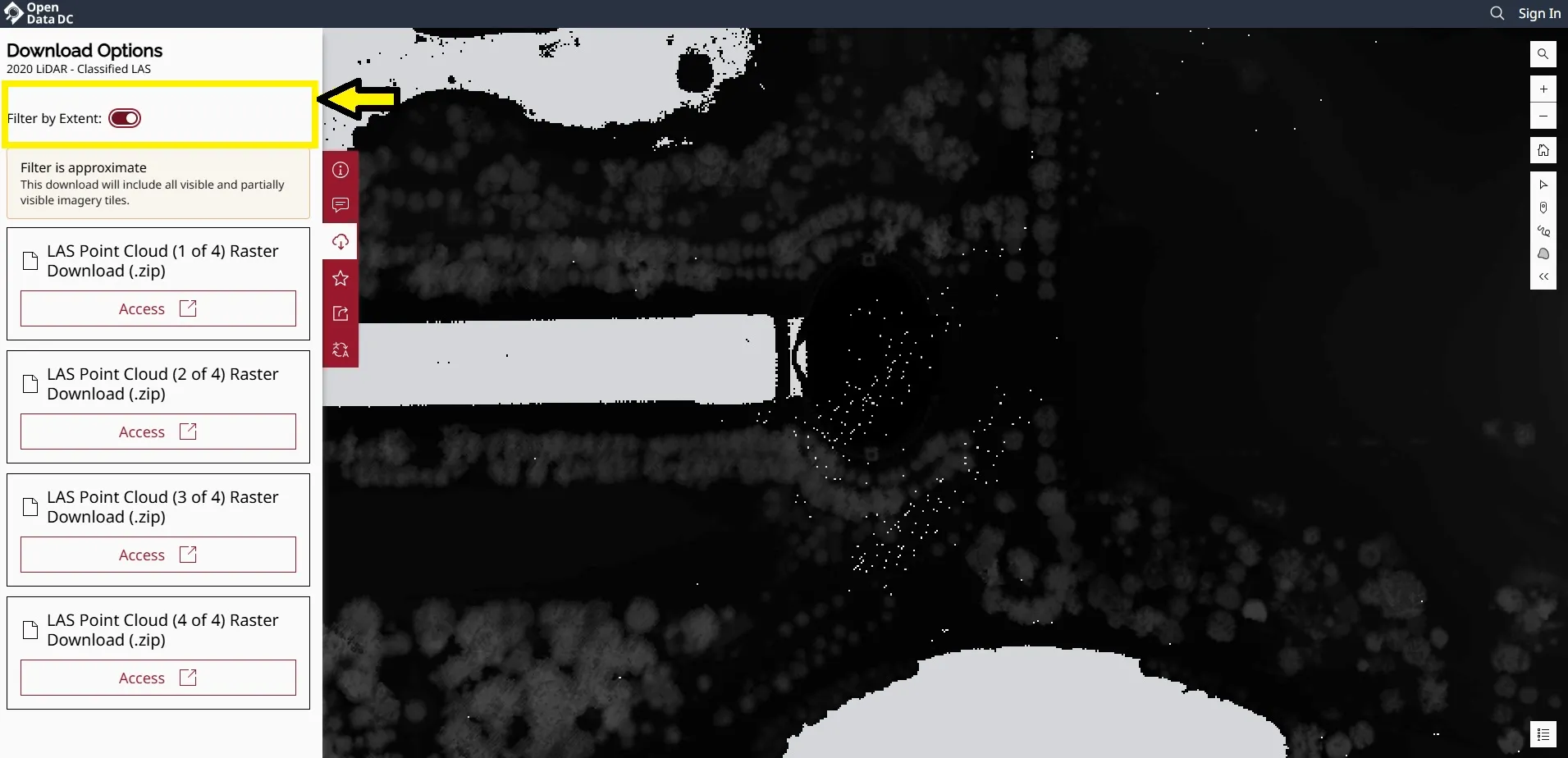

Download LiDAR Point Cloud

Section titled “Download LiDAR Point Cloud”

  1. Go to geo.btaa.org.

  2. Under Explore Maps and Data , search for “DC LiDAR Point Cloud”.

  3. Double click on the layer ” District of Columbia: Classified Point Cloud LiDAR Tile Index” then go to the Visit Source link.

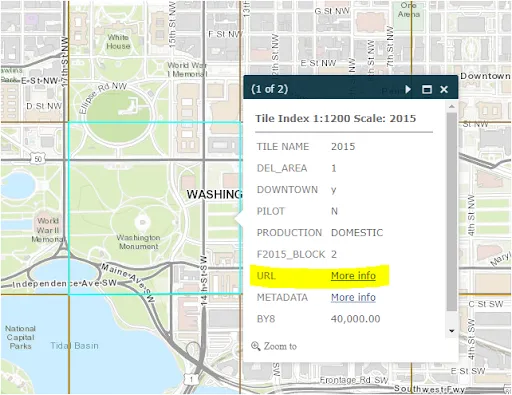

  4. Within the OCTO Tile Grid web application, zoom down to Washington Monument.

  5. Click on the grid box where the majority of Washington Monument is covered (TILE NAME 2015).

  6. Click on the “More info” hyperlinked text will download the LiDAR point cloud for the selected tile area.

Media OptionsSelect the Washington Monument Grid

Loading LiDAR Data in ArcGIS Pro

Section titled “Loading LiDAR Data in ArcGIS Pro”

Loading point cloud

Section titled “Loading point cloud”

  1. Start a new ArcGIS Pro project.

  2. Add the downloaded .las dataset (i.e, 2015.las) in the 2D map. By default the las point clouds are rendered and symbolized based on elevation.

Media Options.las File in a 2D Map

Setting up 2D and 3D map view

Section titled “Setting up 2D and 3D map view”

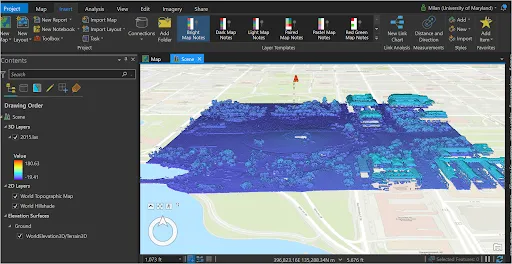

  1. Under the Insert menu bar, click to add New Local Scene then load the same .las dataset in 3D map window. The 3D map rendering gives a better view of the LiDAR point cloud with respect to the ground reality.

    Media Options.las File in a 3D Map

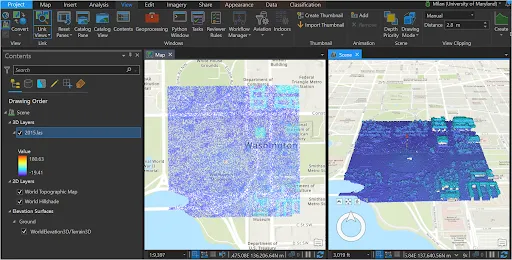

  2. Now, let’s synchronize two map windows so the LiDAR data can be viewed side by side on both 2D and 3D scene.

  3. Under the View menu bar, go to Link Views then choose Center and Scale. Now, dock the Scene window right to the Map window so that you can see both map frames as below:

Media OptionsSide by Side in ArcPro

Symbolize Point Cloud

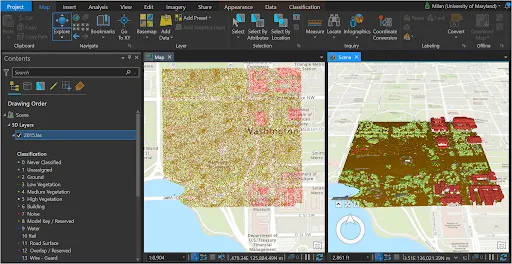

  1. Under the Map window right click on 2015.las layer then go to Symbology. Drawing using Classification instead of Elevation.

  2. Likewise, change the symbology for the 2015.ls layer in the Scene window. There are 20 plus classes that are represented by the point clouds. Your map windows may look like below:

Media OptionsChange the Symbology

Filter Point Cloud

Section titled “Filter Point Cloud”

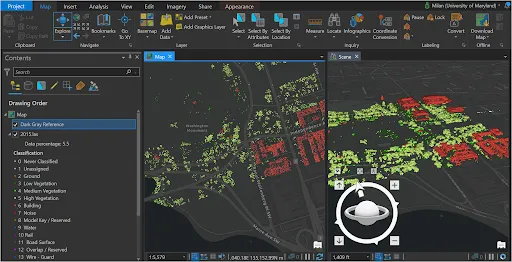

Let’s filter the point cloud dataset that only represents vegetation and building.

  1. Go to the 2015.las layer Properties then in the Layer Properties window select LAS Filter. Under the Classification Codes, first clear all then check “Low Vegetation”, “Medium Vegetation”, “High Vegetation” and “Building” then click OK.

  2. Change the Basemap to Dark Gray Canvas so that the filtered features are stand out well.

Media OptionsFiltering for Trees and Buildings

Creating DEM and DSM from LiDAR

Section titled “Creating DEM and DSM from LiDAR”

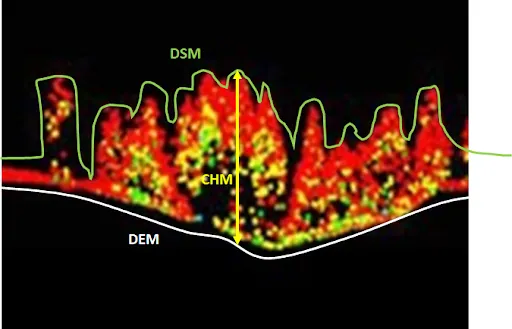

DEM (Digital Elevation Model): Bare ground (ground return)

DSM (Digital Surface Model): everything above ground/natural and built environment (all return)

Media OptionsDEM, DSM, and CHM

Creating DEM

Section titled “Creating DEM”

  1. In ArcGIS Pro, go to the Map window, make sure that no filter is set up for the 2015.las layer (i.e, go to Properties then LAS Filter and make sure everything is checked!).

  2. Right click on the 2015.las layer then go to LAS Filters then clear all but keep the Ground.

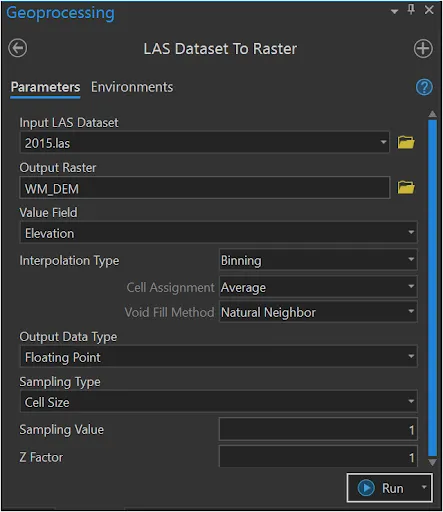

  3. Open LAS Dataset to Raster geoprocessing tool then set up the parameters as shown in the image on the right and Run the tool.

Media OptionsLAS Dataset To Raster Tool

New DEM which is named WM_DEM will be added to the map. Under the layer Symbology change the Color scheme to Elevation #1 or any multipart color scheme to show elevation gradient.

Media OptionsWashington Monument DEM

Creating DSM

Section titled “Creating DSM”

  1. Under the Map window, make sure that no filter is set up for the 2015.las layer.

  2. Right click on the 2015.las layer then go to LAS Filters then choose All Points.

  3. Open LAS Dataset to Raster geoprocessing tool then set up the parameters as shown in the image on the right and Run the tool.

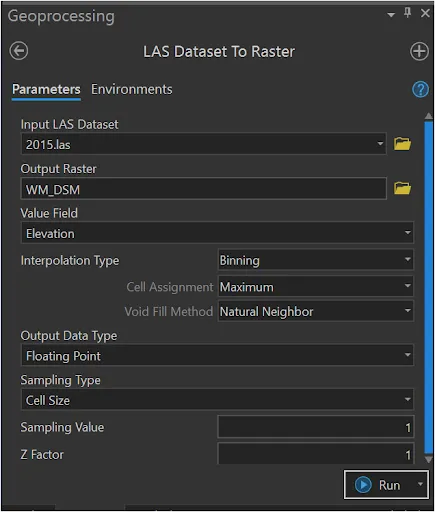

Media OptionsSet Cell Assignment to Maximum

The new DSM which is named WM_DSM will be added to the map. Under the layer Symbology change the Color scheme to Elevation #1 or any multipart color scheme to show elevation gradient.

Media OptionsThe Resulting DSM
